Sarasota, Fla.

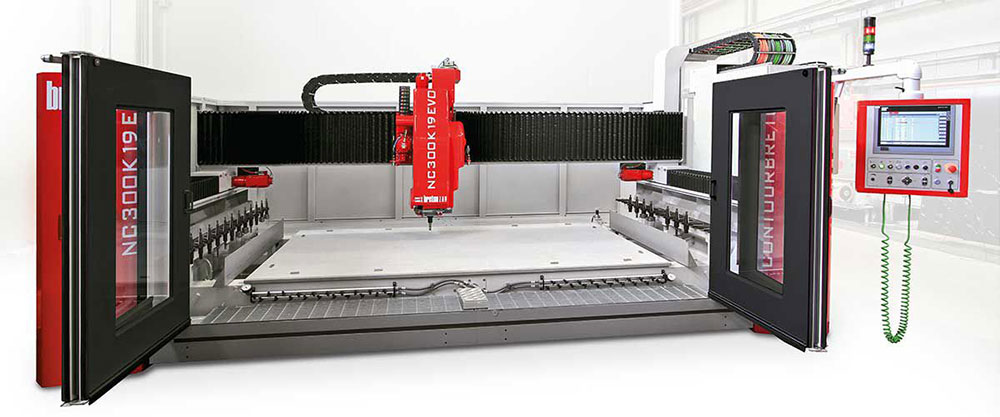

Contourbreton NC 300 EVO

Price

Contact manufacturer for more details

Worktable dimensions

3 Options:

126” x 76”

150” x 91”

150” x 158”

Production area (X & Y axis travel)

126” x 77”

150” x 90”

150” x 157”

Maximum weight on worktable

NA

Z-axis stroke depth

12"

Number of controlled axes for production

3, 4 and 5 axes options available

Maximum thickness of stone to be worked

14"-60”

Maximum tool diameter allowed

5.5"

Automatic tool changing

Yes

Number of tools in changer/magazine for use

Variable 24-62

Minimum/maximum speed of spindle

0-14,500 rpm

Spindle motor power

20.5 HP (S1 duty)

Type of controller

Siemens Sinumerik 840D SL

Machines linkable to network

Yes

X&Y axis movement

Rack-and-pinion

Waterjet-head option available

No

North American-based support

Installation/Training

Maintenance

Repair

Main features

HSK 80 (100) Spindle with independent closed circuit cooling system (ISO 40 for EVO)
Patented MetalQuartz workbench
Safety doors with sound deadening
Covered tool magazine,
Projection laser for cup and piece placement
Robocup (automatic vacuum cup placement)
Zero Radius Kit for machining sinks
Liquid ring vacuum pump
Automated lubrication
User-friendly Breton SmartCam Software
Laser measuring device for tools
A-axis option
Heavy construction (16,500 lbs – 22,000 lbs)
24 hour service hotline

Contact

Breton USA
1753 Northgate Blvd.
Sarasota, Fla.

941-360-2700
machinesales@bretonusa.com

www.bretonusa.com
