Caledonia, Mich.

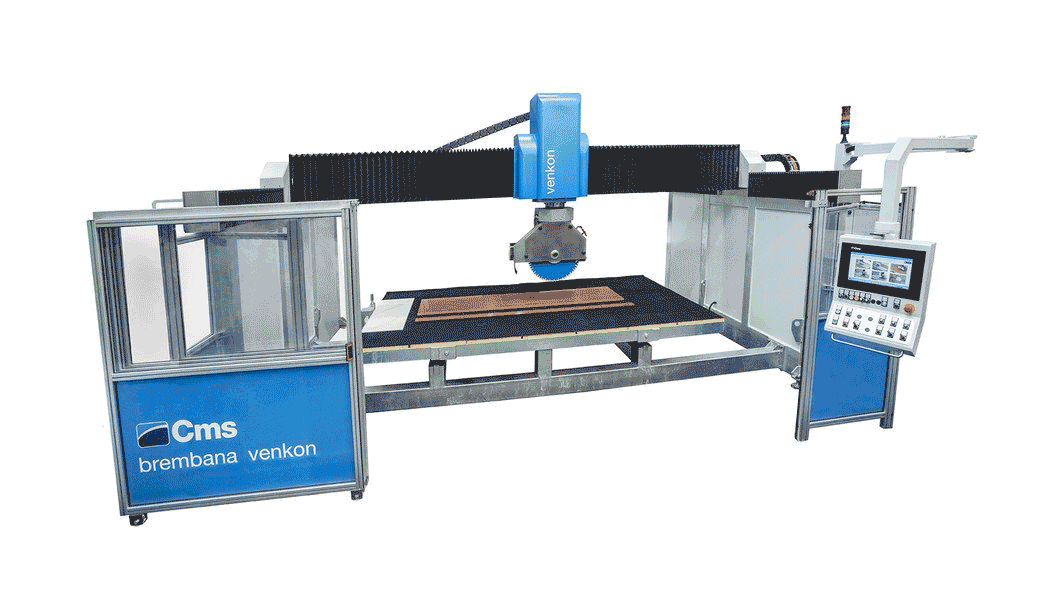

CNC 5-axes saws: VENKON, IMPACT, FORMAX, SPRINT, GIXA
SPEED series
MAXIMA series
G Rex

Price

$90,000 - $2,000,000

Worktable dimensions

40” X 30” to 150” X 275”

Production area (X & Y axis travel)

150”/167” to 275"

Maximum weight on worktable

11,000 lbs to 55,000 lbs, depending on model

Z-axis stroke depth

10" to 78", depending on model

Number of controlled axes for production

3, 4 and 5+lathe

Maximum thickness of stone to be worked

From 0.5cm to 150cm

Maximum tool diameter allowed

10" for router, 48" for blade

Automatic tool changing

Yes

Number of tools in changer/magazine for use

10 to 76, depending on model

Minimum/maximum speed of spindle

500 rpm – 15,000 rpm

Spindle motor power

18 HP – 40 HP

Type of controller

OSAI Open M / FANUC / FAGOR, depending on model

Machines linkable to network

Yes

X&Y axis movement

Ball/screw or rack-and-pinion, depending on model

Waterjet-head option available

Yes

North American-based support

Installation/Training

Maintenance

Repair

Contact

CMS North America
4095 Karona Ct.
Caledonia, Mich.

616-698-9970

616-698-9730 FAX
www.cmsna.com
