Winston-Salem, N.C.

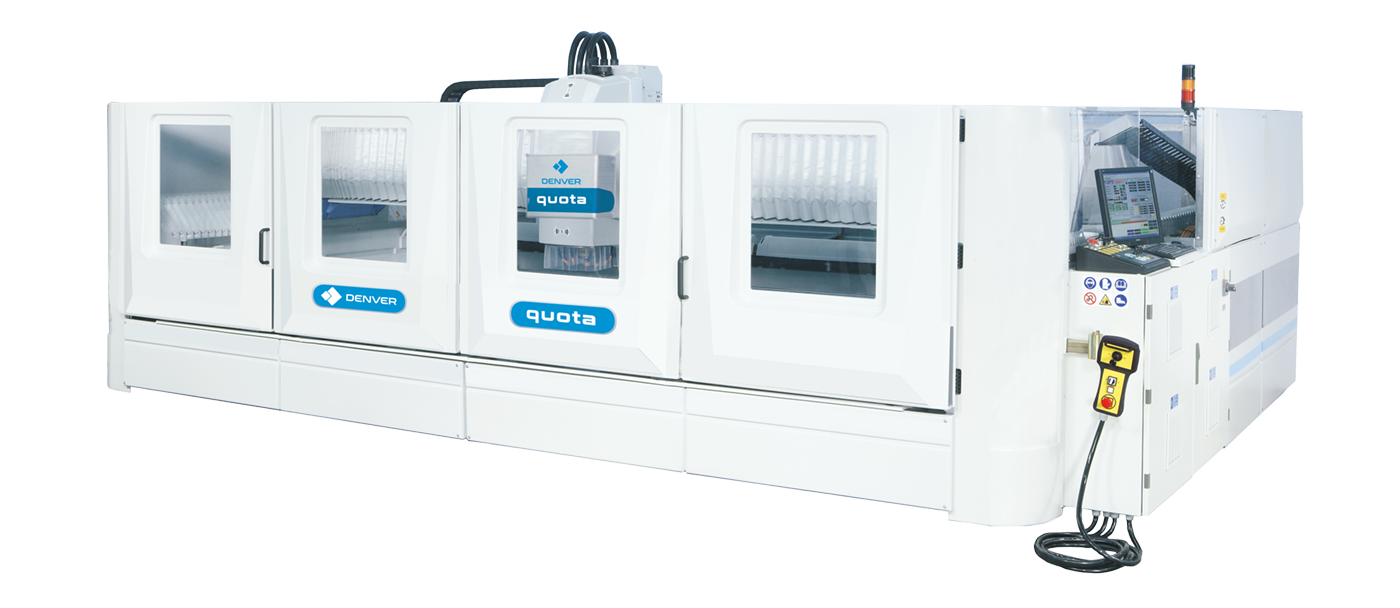

Quota 4200

Price

$195,000 - $235,000 incl. delivery, installation, training

Worktable dimensions

158" x 90"

Production area (X & Y axis travel)

165" x 96"

Maximum weight on worktable

3,300 lbs equally distributed on the table

Z-axis stroke depth

20"

Number of controlled axes for production

3 standard; 4 optional

Maximum thickness of stone to be worked

13"

Maximum tool diameter allowed

5.5"

Automatic tool changing

Yes

Number of tools in changer/magazine for use

28

Minimum/maximum speed of spindle

0-10,000 rpm

Spindle motor power

15 HP standard; 21 HP optional

Type of controller

OSAI

Machines linkable to network

Yes

X&Y axis movement

Rack-and-pinion

Waterjet-head option available

No

North American-based support

Installation/Training

Maintenance

Repair

Main features

Self-adjusting Aluminum Table (Patented) to ensure planarity longevity and working perfection

Dynamic compensation of tool wear

Monobloc frame to deliver max working area v/s occupied footprint

Ability to import files from digitizers

Large range of available features: touch probes; laser projector for pods; T axis for processing inclined drain boards; tanks for water collection and recirculation; software package for 3D processings.
