Braxton-Bragg LLC
Knoxville, Tenn.

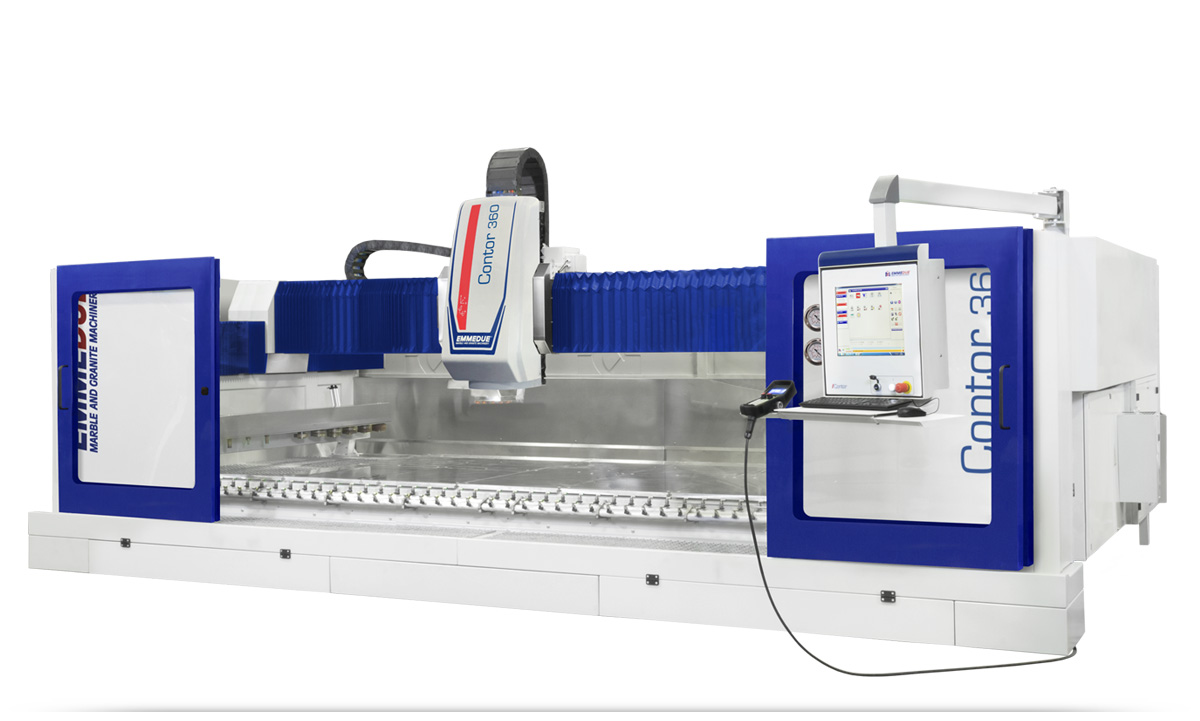

Contor series
260, 360, 400

Price

From $130,000

Worktable dimensions

98" x 47" (260)

130" x 70" (360)

150" x 86" (400)

Production area (X & Y axis travel)

3 Options:

102" x 55” (260)

141” x 74” (360)

153” x 106” (400)

Maximum weight on worktable

NA

Z-axis stroke depth

15 ¾"

Number of controlled axes for production

3 (T-axis control optional)

Maximum thickness of stone to be worked

20 ½" tools, 11" blade

Automatic tool changing

Yes

Number of tools in changer/magazine for use

11+11

Maximum speed of spindle

12,000 rpm

Spindle motor power

24 HP

Machines linkable to network

Yes

X&Y axis movement

Recirculating roller

Waterjet-head option available

No

North American-based support

Installation/Training

Maintenance

Repair

Main features

Monobloc construction

PC-based Windows software

Automatic lubrication

Water-collection tanks (optional)

Slab-thickness detector (optional)

Contact

Braxton-Bragg LLC
4100 Appalachian Way

Knoxville, Tenn

800-575-4401
m.maples@braxtonbragg.com

www.braxtonbragg.com
