Charlotte, N.C.

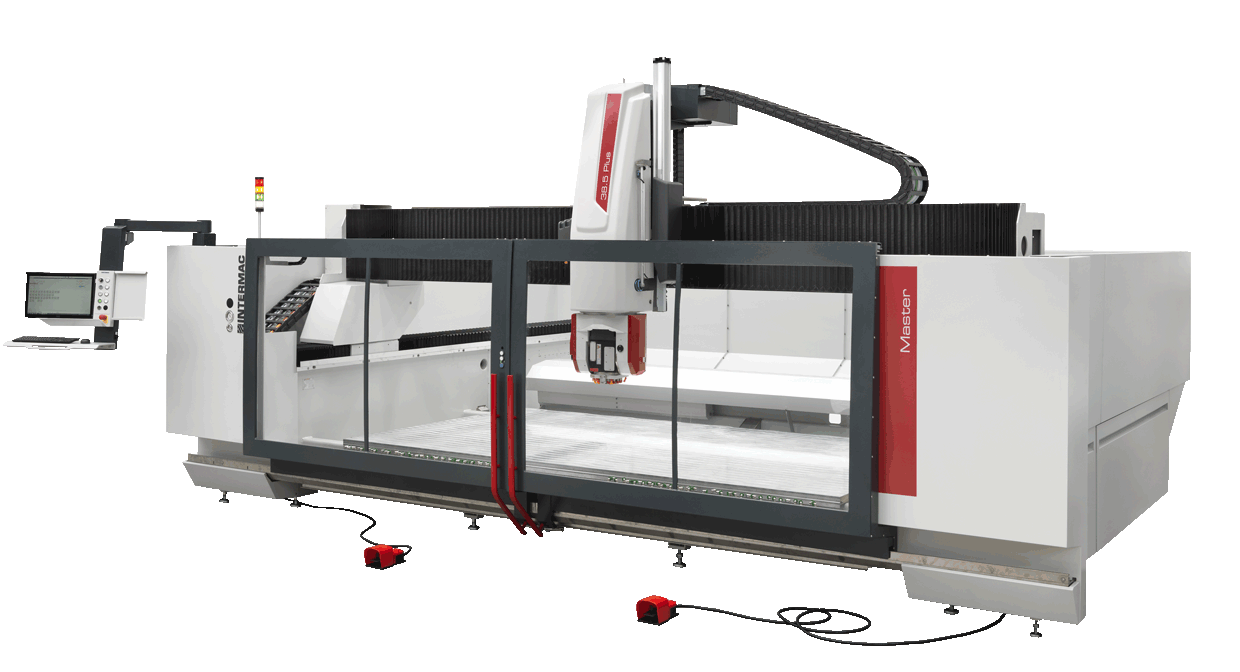

Master series

Price

Contact vendor

Production area (X & Y axis travel)

130" x 63" (all Master 33.3)

150.7" x 78.7" (all Master 38.3)

177" x 98.4" (all Master 45.3)

Z-axis stroke depth

18.3" (Master series)

25.6 (Master Plus series)

Number of controlled axes for production

3 (Master, Master X.3 Plus series)

5 (Master X.5 series)

Tool coupling

ISO 40

Automatic tool changing

Yes

Number of tools in changer/magazine for use

Up to 53 (Master 33.3, Master 33.3 Plus, Master 33.5 Plus)

Up to 61 (Master 38.3, Master 38.3 Plus, Master 38.5 Plus)

Up to 69 (Master 45.3, Master 45.3 Plus, Master 45.5 Plus)

Maximum speed of spindle

12,000 rpm

Spindle motor power

20.1 HP in S1/continuous; 24.1 HP in S6/short-term (all models)

Machines linkable to network

Yes

Waterjet-head option available

No

North American-based support

Installation/Training

Maintenance

Repair

Main features

Dual height (525mm or 730mm) worktable

Optional mechanical tool pre-setter

Optional material thickness tracer

Laser for vacuum-cup positioning

Windows user interface

EasySTONE, iCam, bSolid software-optimized

Contact

Intermac America

4110 Meadow Oak Dr.

Charlotte, N.C.

704-357-3131

carey.brayer@biesseamerica.com

www.intermac.com
