Northwood Machine Manufacturing
Louisville, Ky.

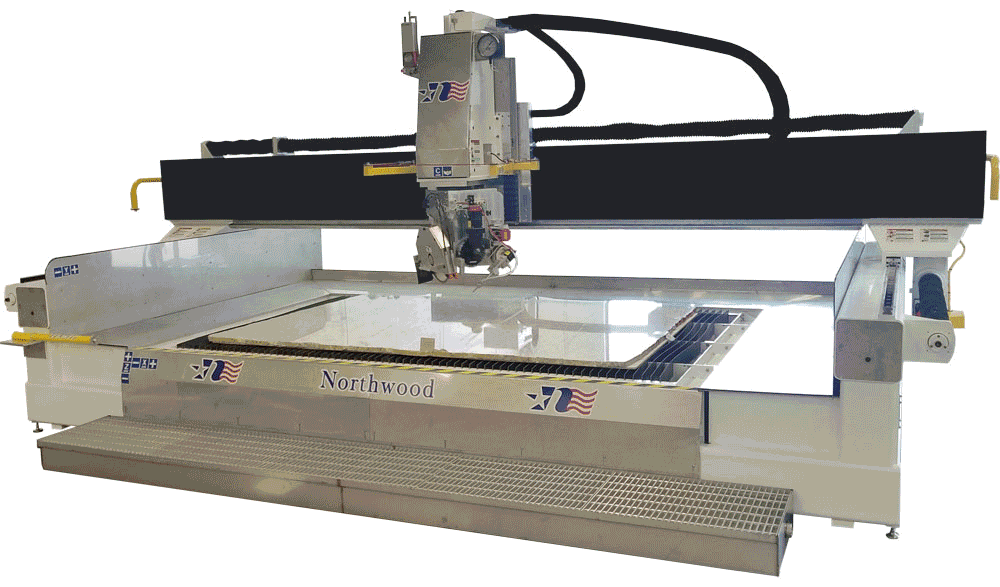

Sawjet SW/SJ series
Fabcenter series

Price

Contact vendor

Worktable dimensions

144" x 84" (all SW/SJ models)

156" X 96" (Fabcenter 138 UFC)

180" X 96" (Fabcenter 158 UFC)

Production area (X & Y axis travel)

168" X 100" (Fabcenter 138 UFC)

192" X 100" (Fabcenter 158 UFC)

Maximum weight on worktable

3,000 lbs (Fabcenter series)

Z-axis stroke depth

14" (Fabcenter series)

Number of controlled axes for production

3 (SW138-SJ127 Dual Table, SW138-SJ127 SingleTable)

4 (Fabcenter series)

5 (SW138-SJ127 Raptor Dual Table, SW138-SJ127 Raptor SingleTable)

Maximum thickness of stone to be worked

4"

Maximum tool diameter allowed

6" (Fabcenter series)

Automatic tool changing

Yes (Fabcenter series)

Number of tools in changer/magazine for use

32 (Fabcenter series)

Spindle motor power

15 HP (Fabcenter series)

20 HP (SW/SJ series)

Type of controller

Fanuc

Machines linkable to network

Yes

X&Y axis movement

Ball/screw

Waterjet-head option available

Waterjet is standard with SW/SJ series

North American-based support

Installation/Training

Maintenance

Repair

Main features

StoneVision fabrication software & AlphaCAM

Remote machine control diagnostics

Lifetime phone support and personnel training

Bar Code Reader for quickly loading work programs and other information

Laser Tool Calibration (LTC) for measuring tooling (Fabcenter series)

3-year Extreme Duty Spindle warranty (Fabcenter series)
