Punta Gorda, Fla.

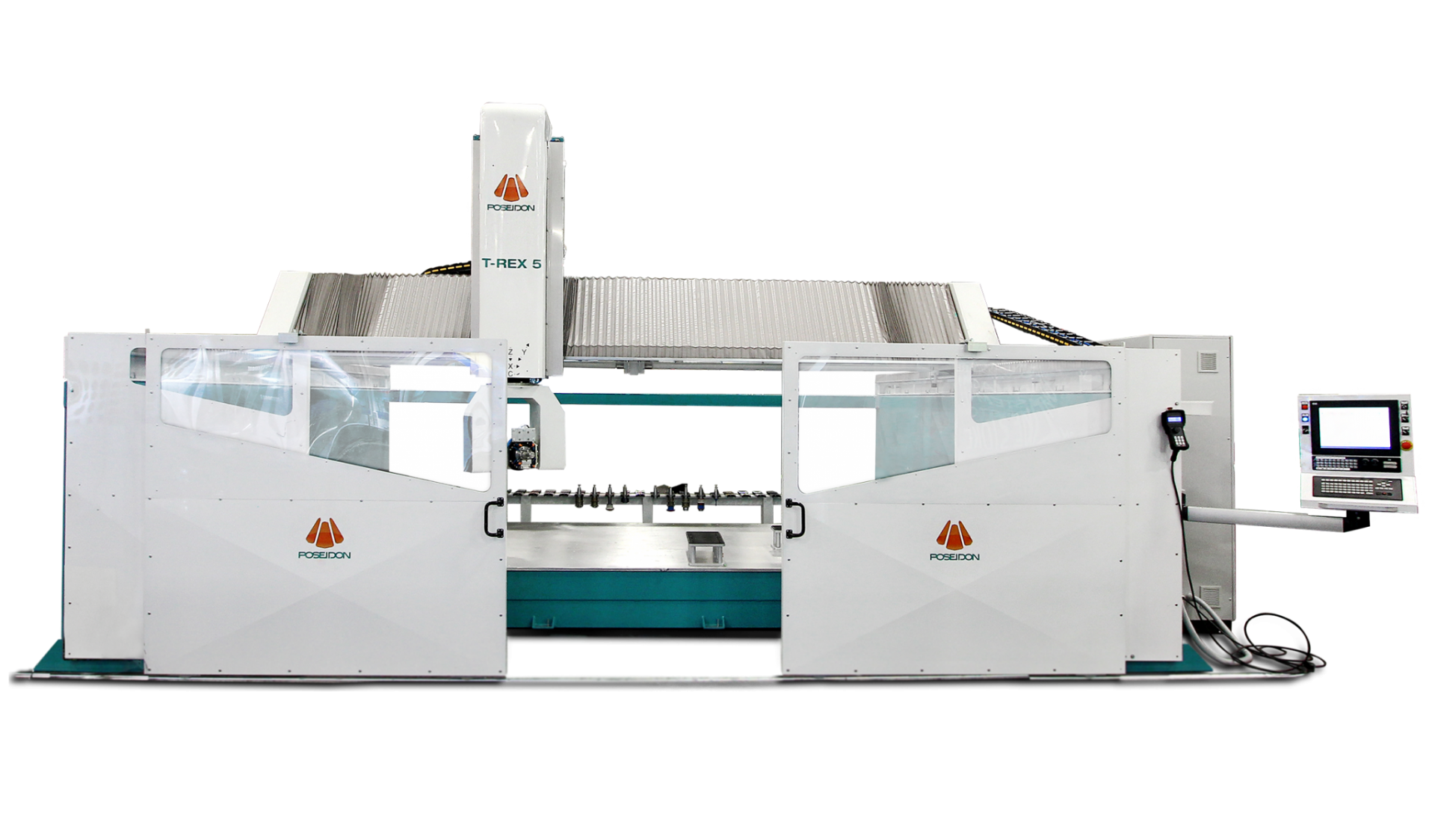

T-Rex Series
(Model S, Model X)

Price

From $160,000

Worktable dimensions

3 Options:

160" x 80"

160" x 100”

160” x 120”

Production area (X & Y axis travel)

160” x 120”

Maximum weight on worktable

4,000 lbs

Z-axis stroke depth

24"-44"

Number of controlled axes for production

5

Maximum thickness of stone to be worked

4cm

Automatic tool changing

Yes

Number of tools in changer/magazine for use

80

Minimum/maximum speed of spindle

0-8,000 rpm

Spindle motor power

25 HP - 35 HP

Type of controller

Poseidon custom design by CNI

Machines linkable to network

Yes

X&Y axis movement

Rack-and-pinion

Waterjet-head option available

No

North American-based support

Installation/Training

Maintenance

Repair

Main features

Dual tools per cone for profiling

Non-monobloc structure for less vibration

T-Rex is only CNC to perform "Hybrid Cycle" in the industry

T-Rex Model X available in single- and dual-table configurations

Contact

Poseidon Industries Inc.

5462 Williamsburg Dr.
Punta Gorda, Fla.

877-571-5599

8660637-0683
joe@poseidonmachinery.com

www.poseidonmachninery.com
